65mm Square Flush Pull And Turn Handle Satin Chrome

This square flush ring pull handle features a brushed chrome finish, is 65mm square and will operate a mortice latch with an 8mm spindle.

This flush door handle is ideal for French doors, bi-fold doors and other applications that require a flush fitting handle that can also be used to operate a mortice latch or claw bolt.

This square flush pull & turn handle has an overall thickness of 16mm with a 14mm mounting depth and will require a 63mm radius aperture.

Click on the images to see them in a high resolution, images show this handle:

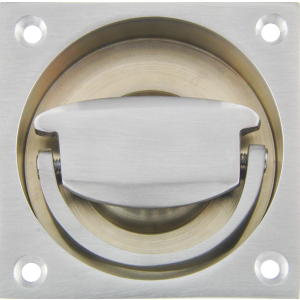

• Face on with the handle in the extended position.
• Face on with the handle in the closed position.
• Top view with the handle in the extended position.
• The back of the flush pull and turn mechanism.
• Top view of the back of the flush pull handle.
• The mounting screws.
